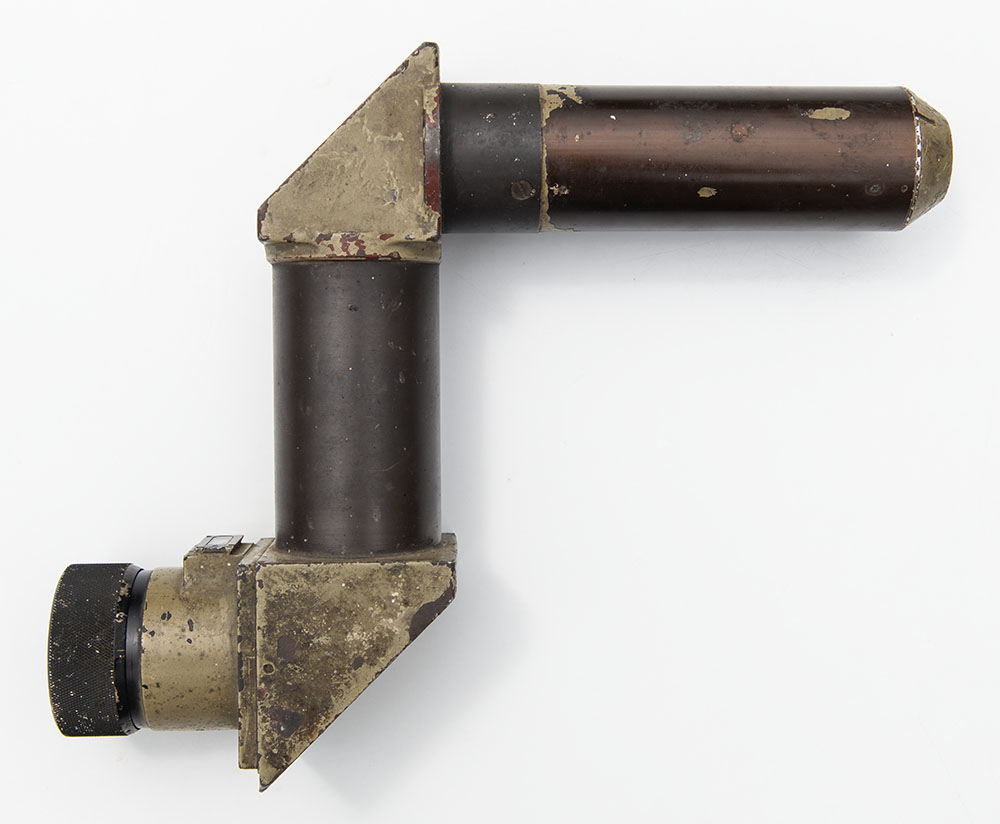

This is the shortest version of the Pz.B.W.F. by Zeiss and was designed for armoured turrets in Baustärke B1 thickness of 12 cm.
Design:
Carl Zeiss Jena
Manufacturer(s):
Carl Zeiss Jena
Zeiss Ikon
Armour thickness:
Baustärke B1, 12 cm
Used for armoured parts:
| Pieces | Armoured part |
|---|---|
| 6 | 35P8 (Sechsschartenturm) |
| 6 | 44P8 (Panzerturm für Artilleriebeobachtung) |
| 4 | 61P8 (Dreischartenturm) |
Known examples (existing and from documents):
| Type | Hersteller | Code | Number | Number head | Color | Grease | Bunker |
|---|---|---|---|---|---|---|---|

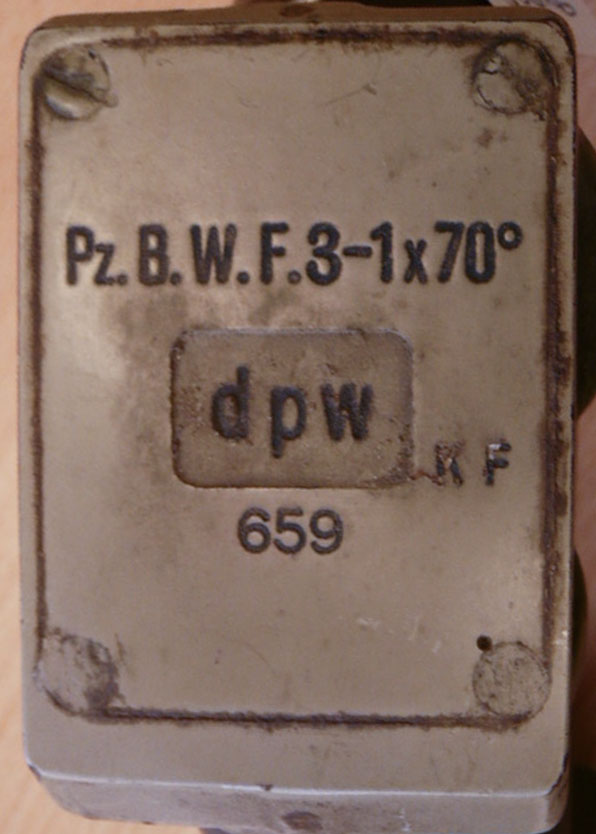

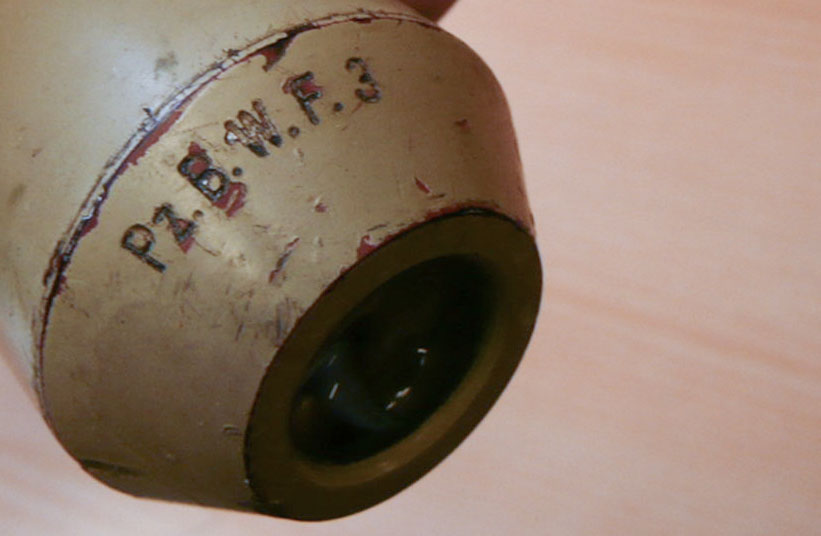

| Pz.B.W.F. 3 | Zeiss-Ikon, Goerz Fabrik, Berlin | dpw | 659 | - | K F | - | |
| Pz.B.W.F. 3 | Carl-Zeiss, Jena | - | 79803 | ||||
| Pz.B.W.F. 3 | Carl-Zeiss, Jena | - | |||||
| Pz.B.W.F. 3 | Carl-Zeiss, Jena | - | |||||
| Pz.B.W.F. 3 | Carl-Zeiss, Jena | - | |||||
| Pz.B.W.F. 3 | Zeiss-Ikon, Goerz Fabrik, Berlin | 31 | |||||
| P.B.W.F. 3 | Carl-Zeiss, Jena | - | 69030 | - | Sandgelb | - | - |

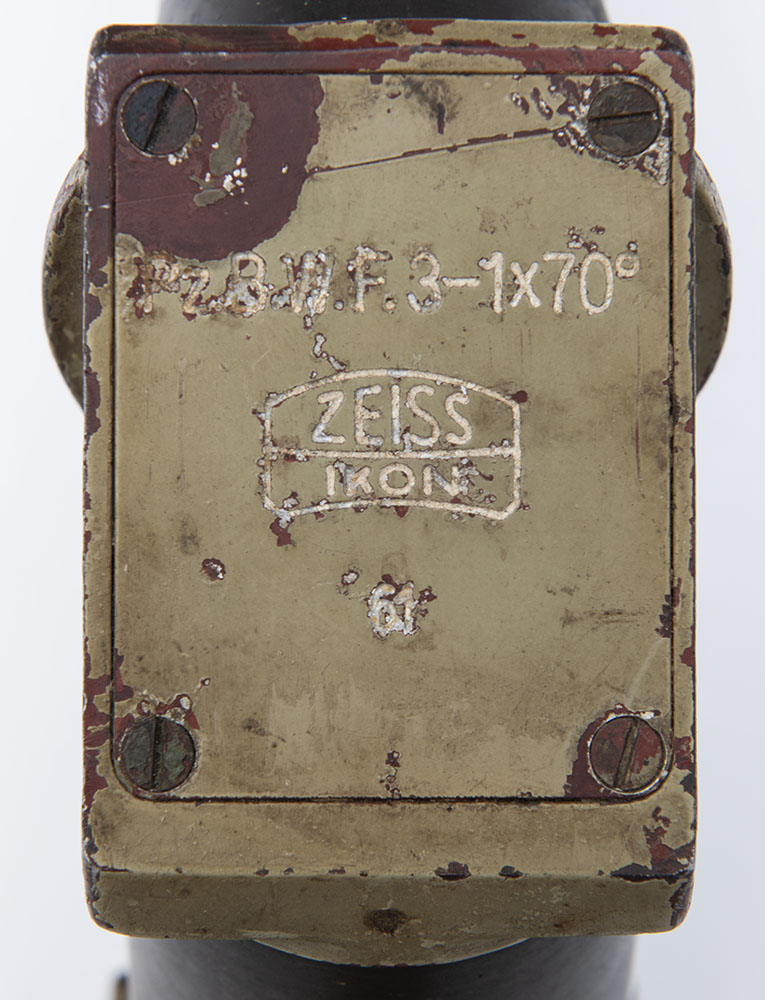

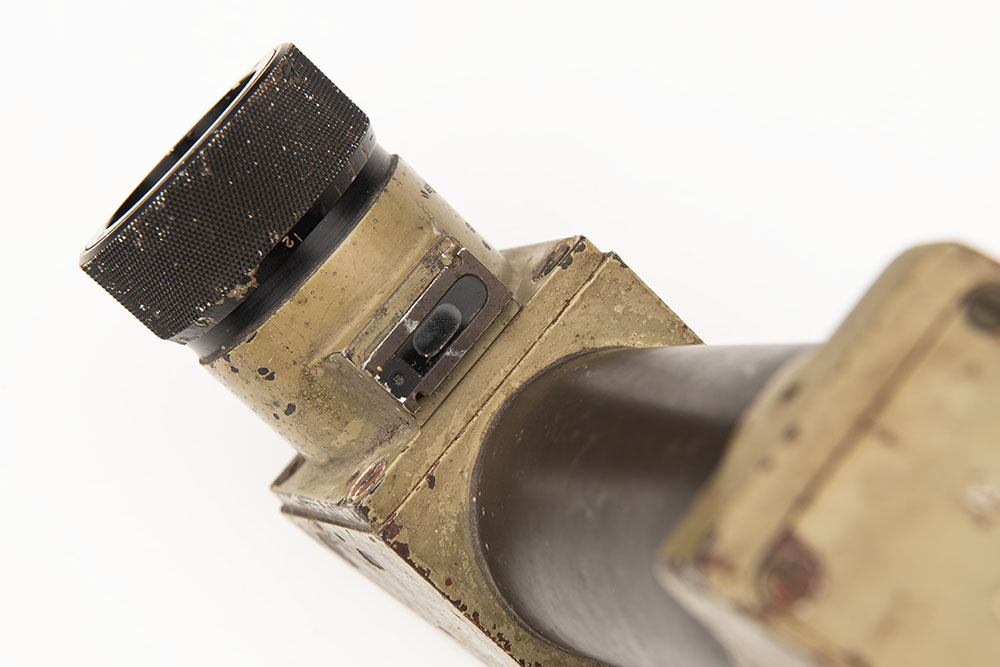

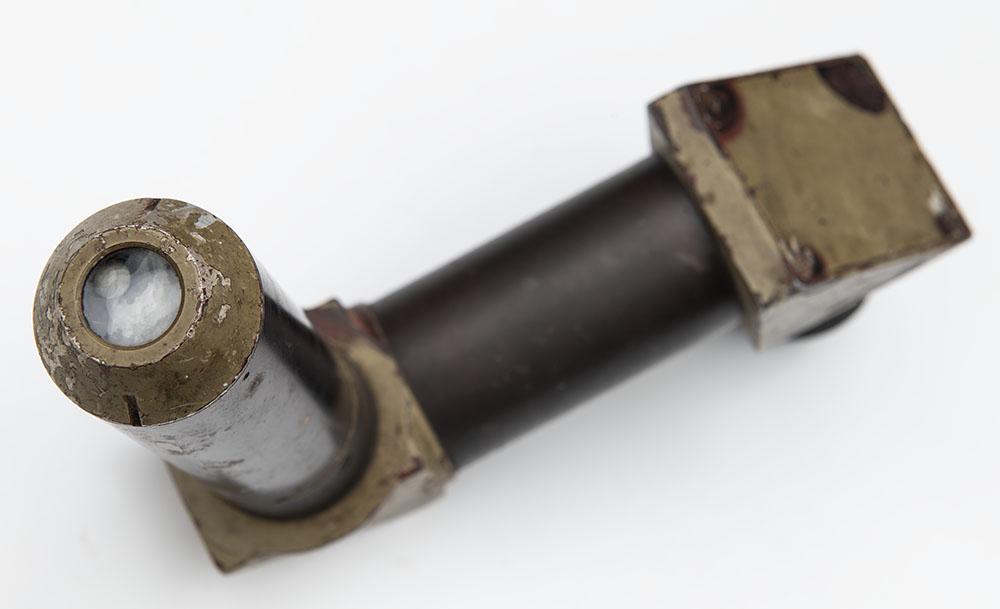

| Pz.B.W.F. 3 | Zeiss-Ikon, Goerz Fabrik, Berlin | 61 | Sandgelb |
